پروژه:

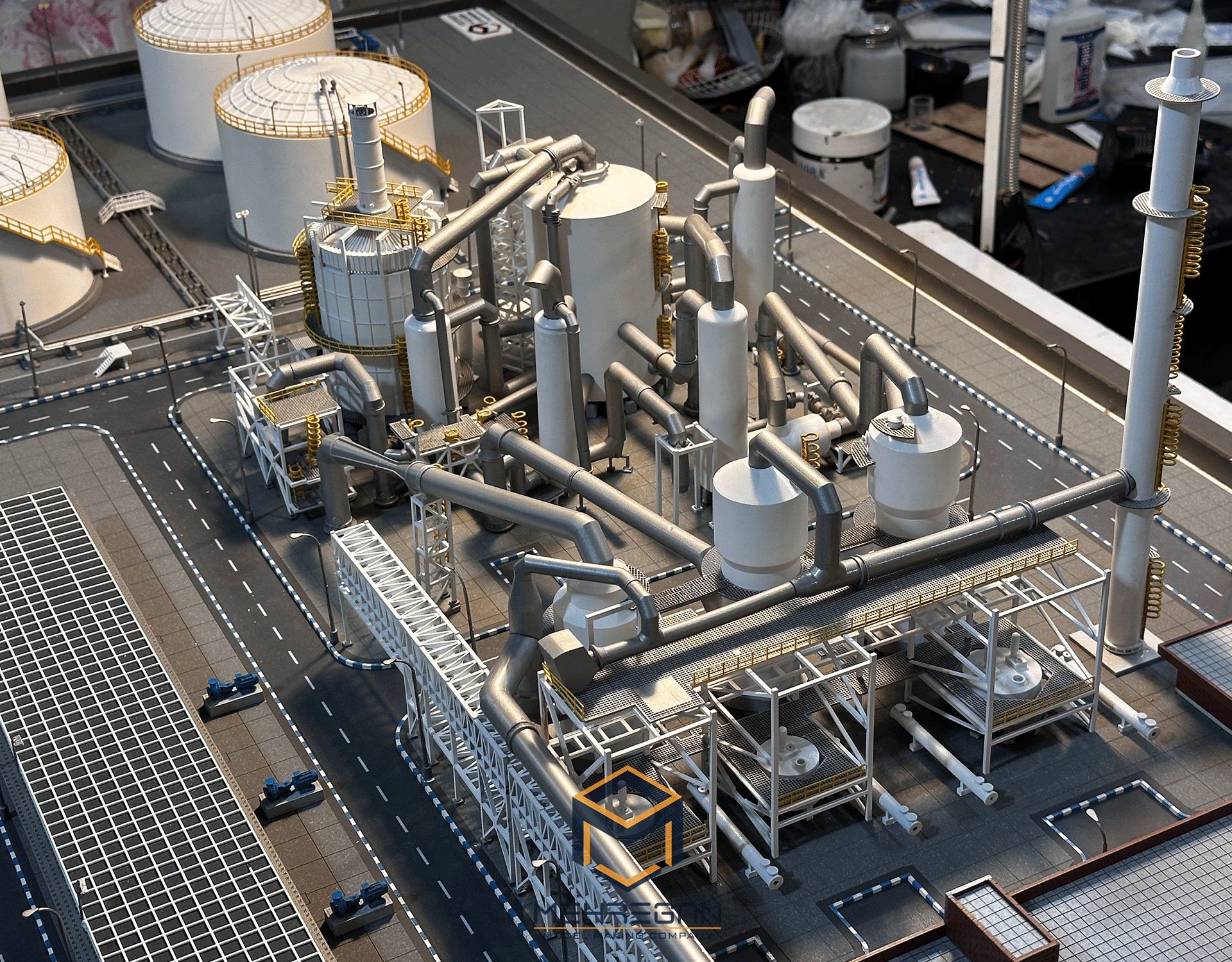

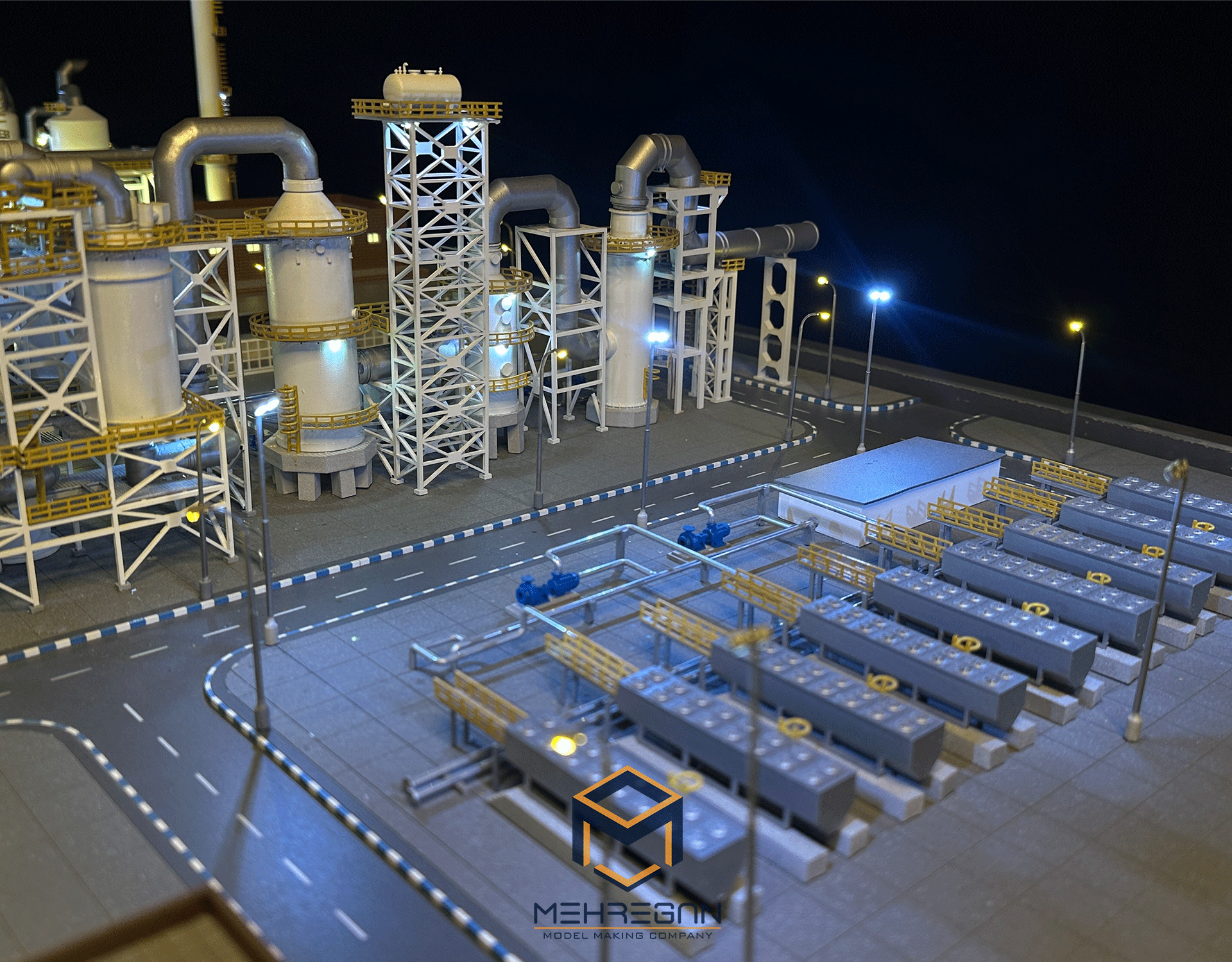

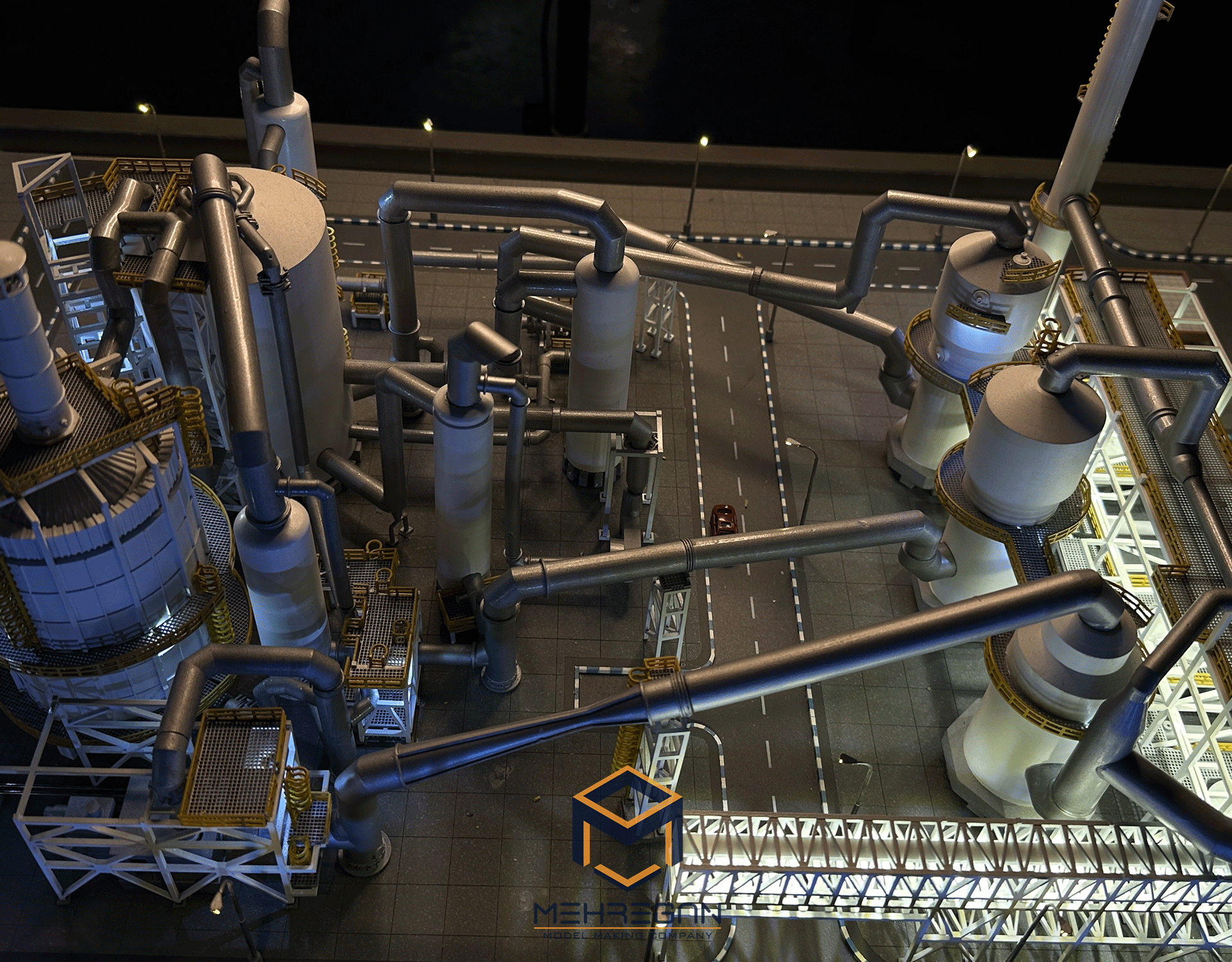

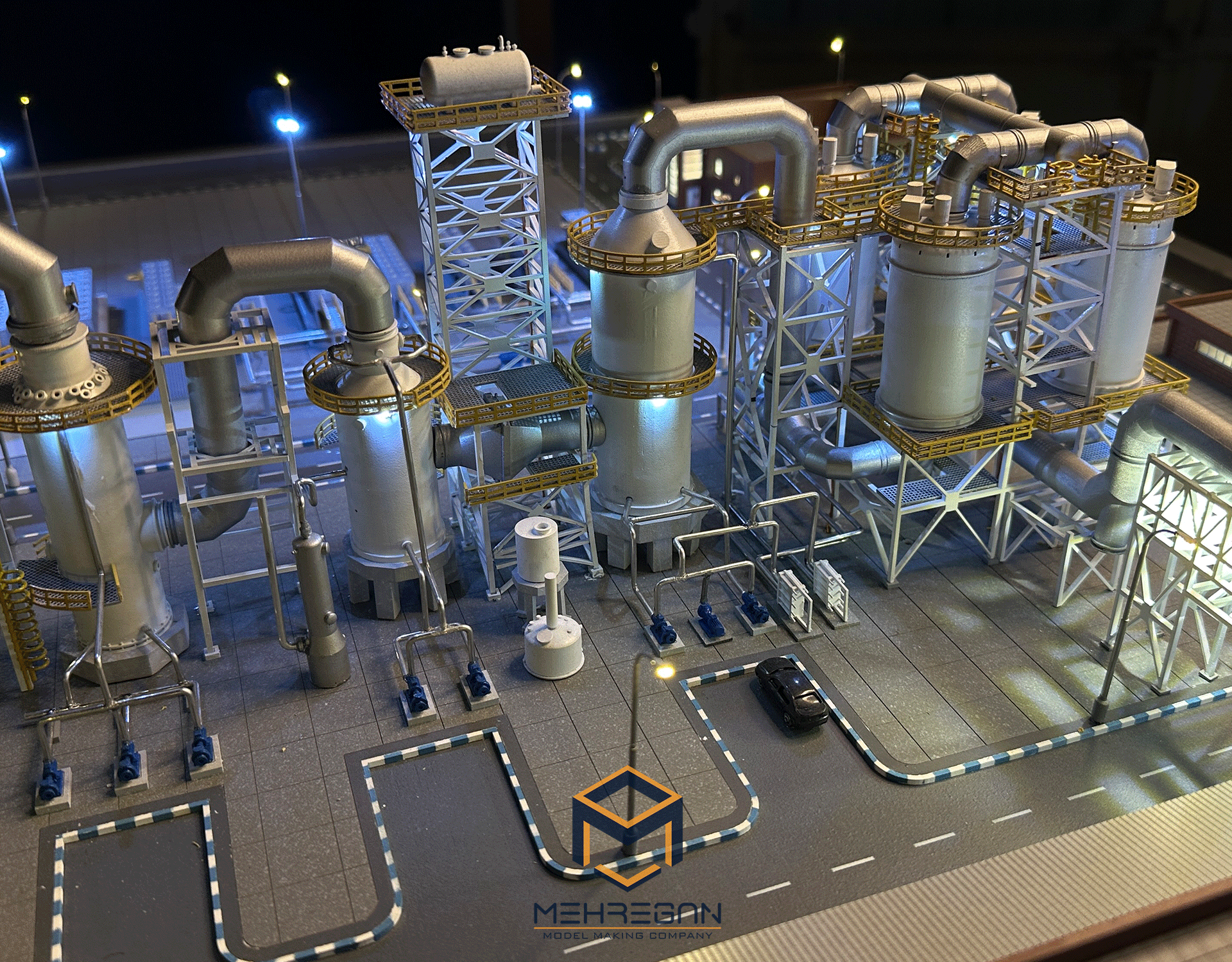

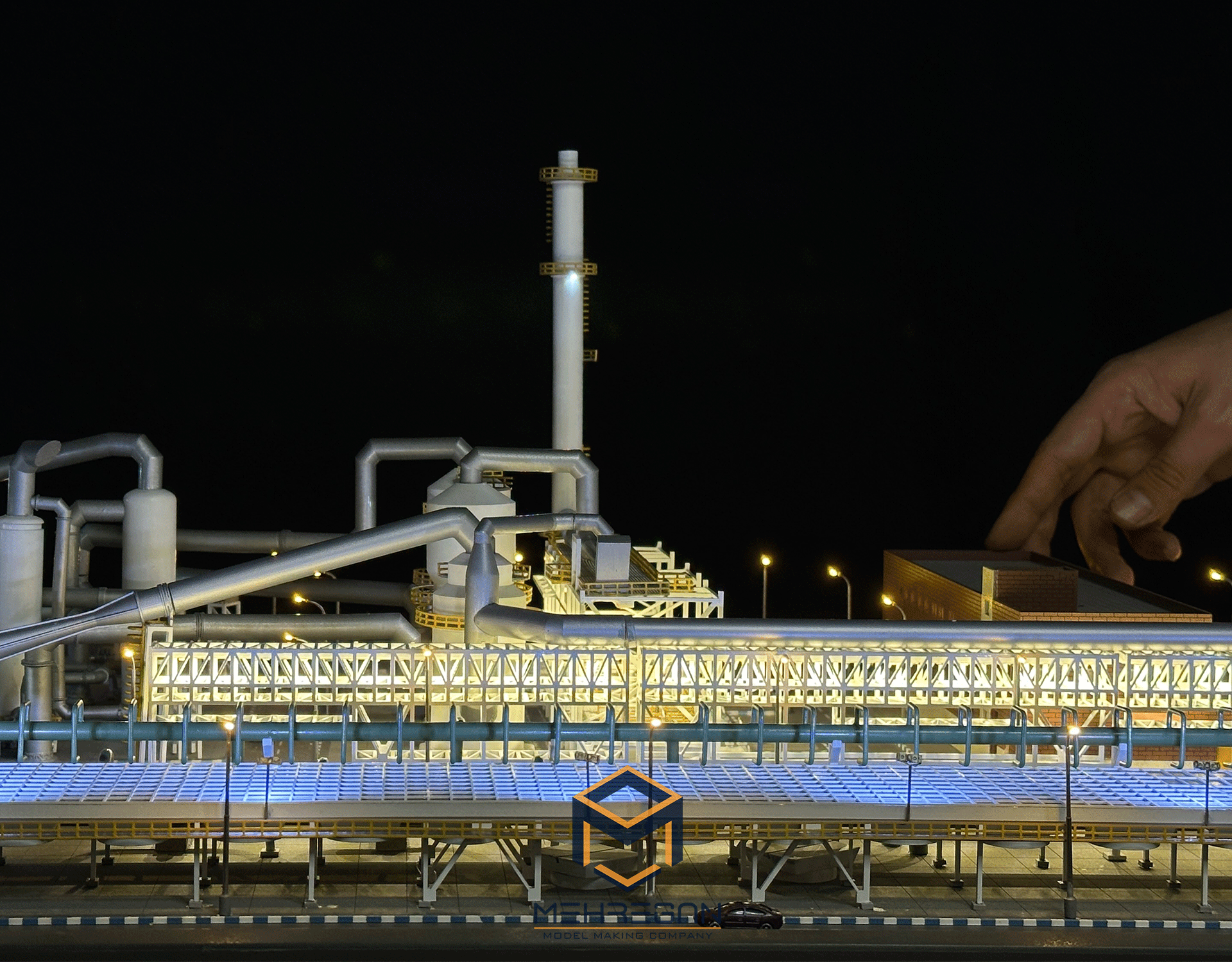

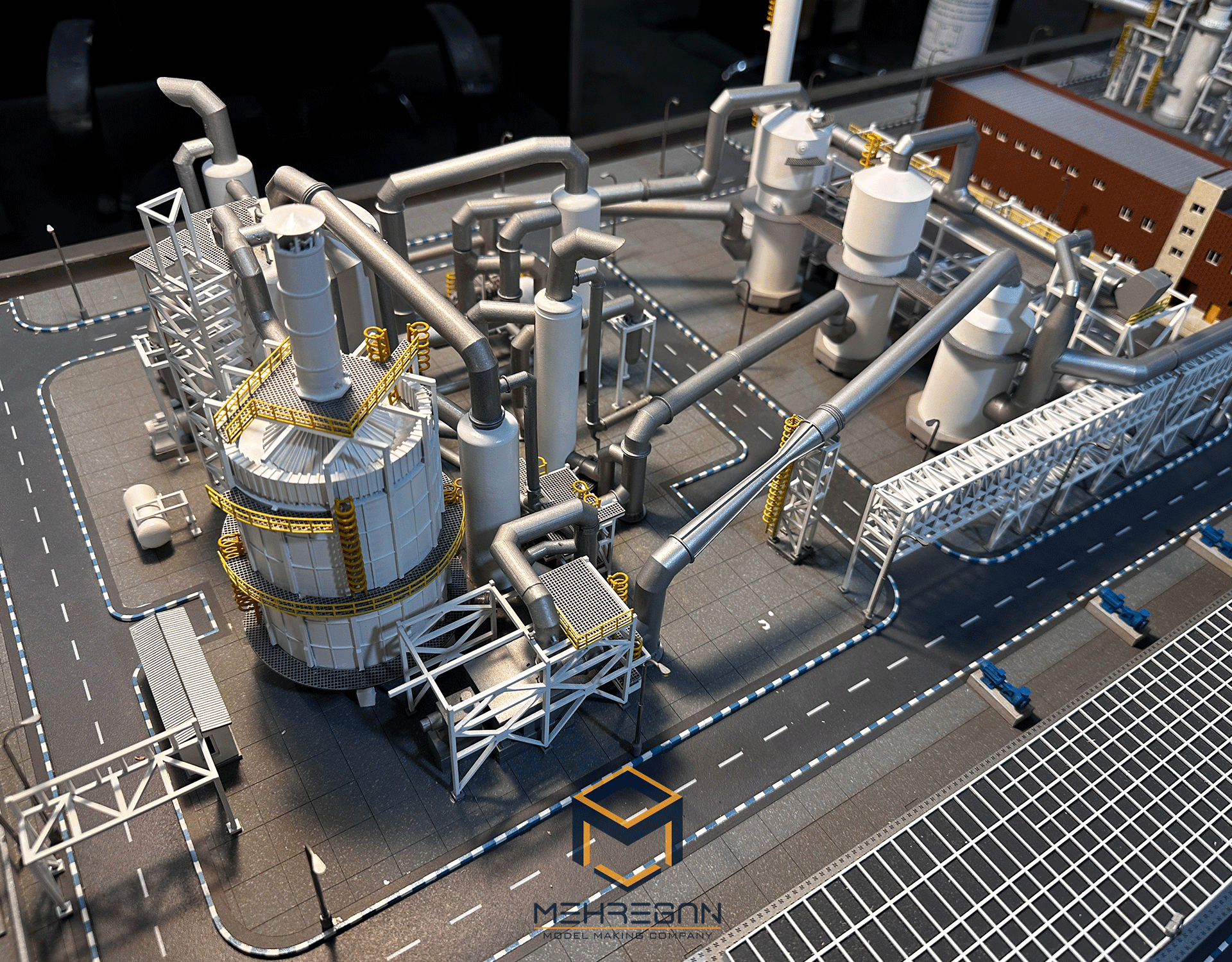

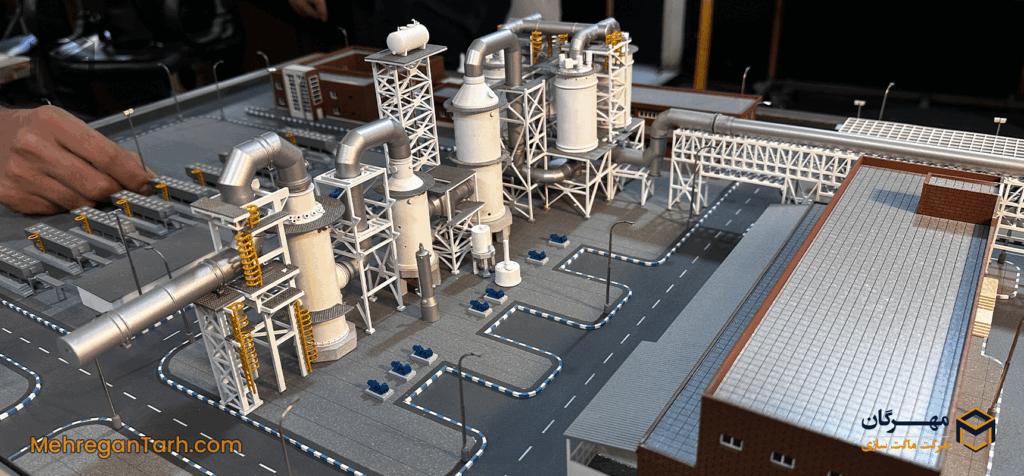

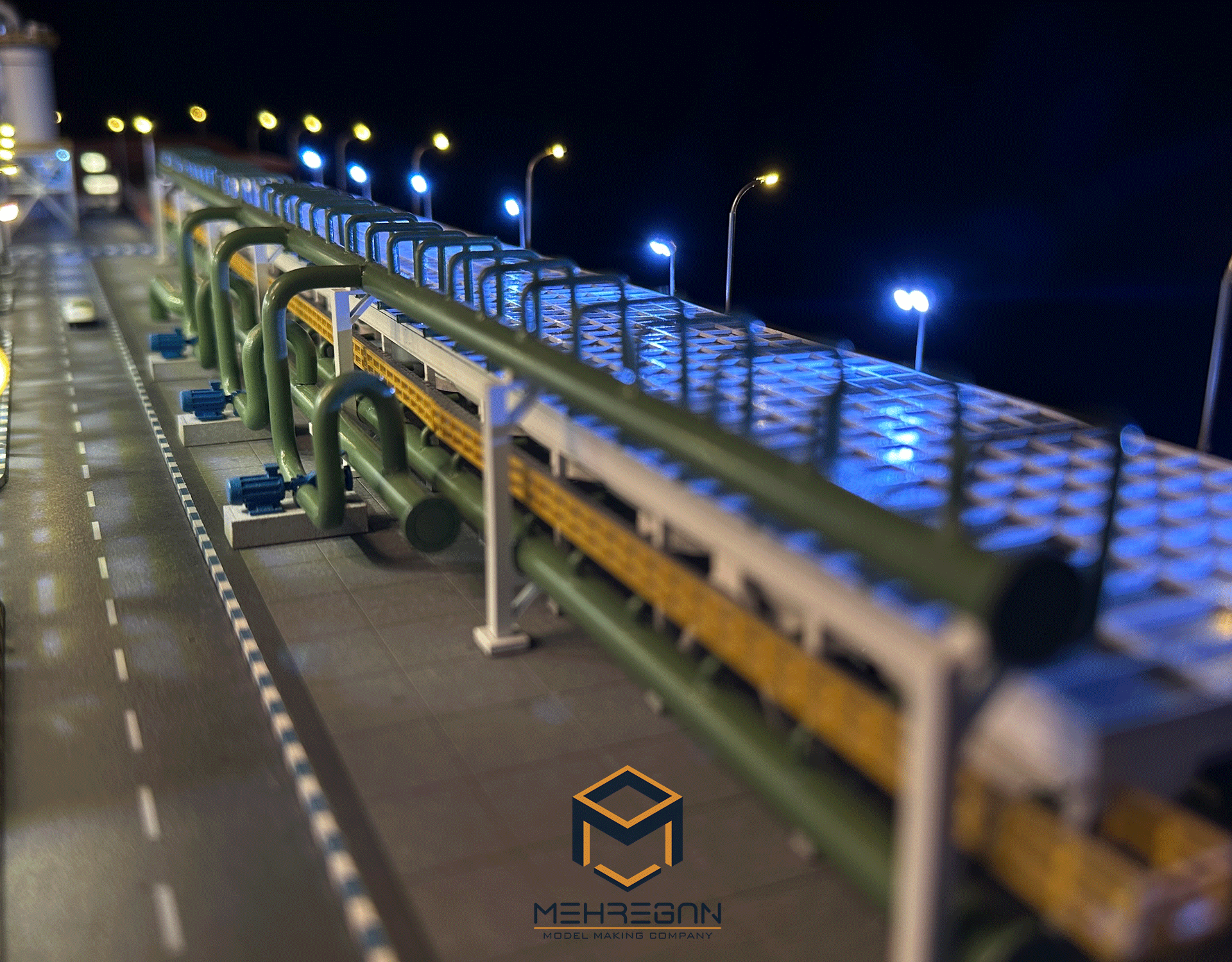

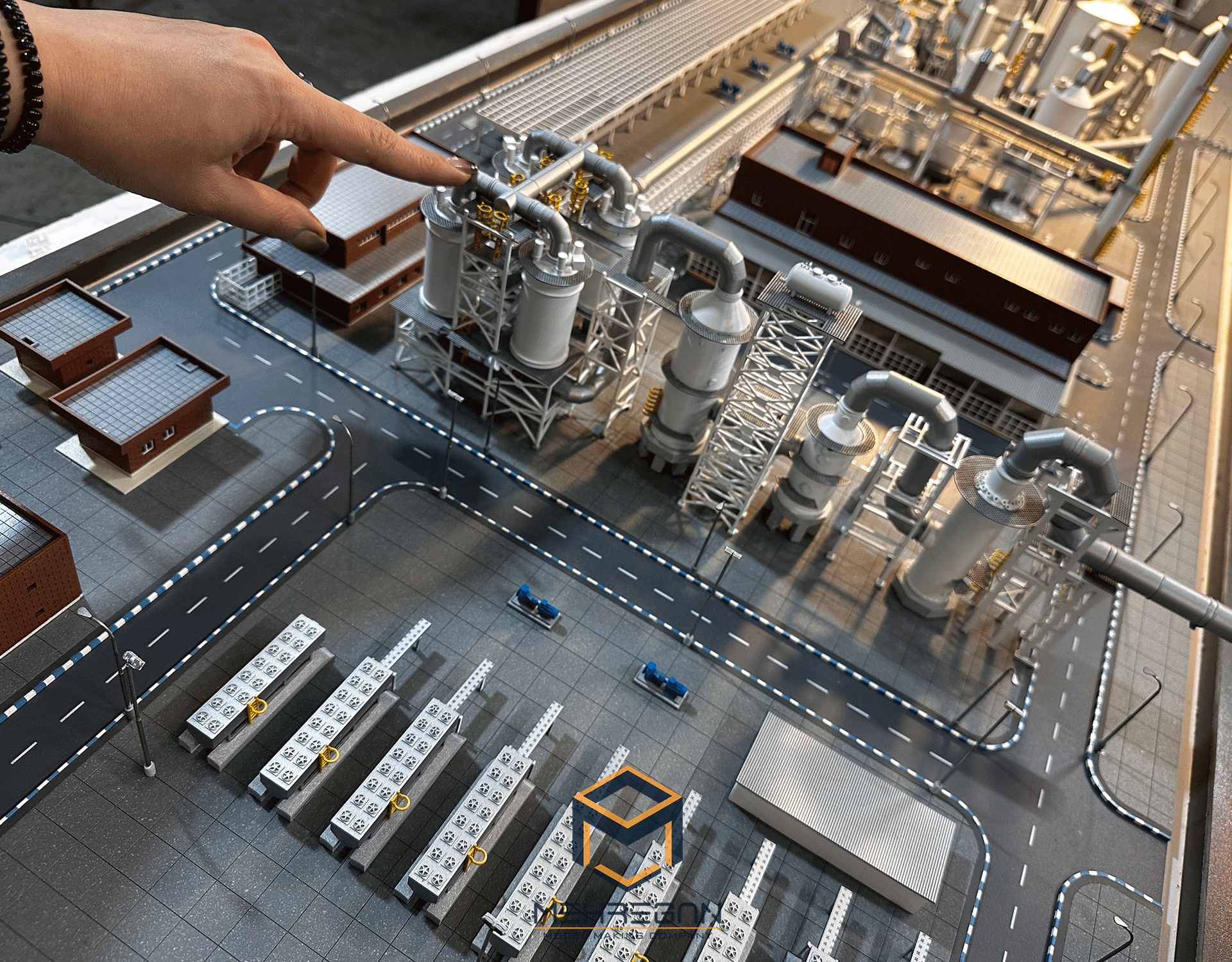

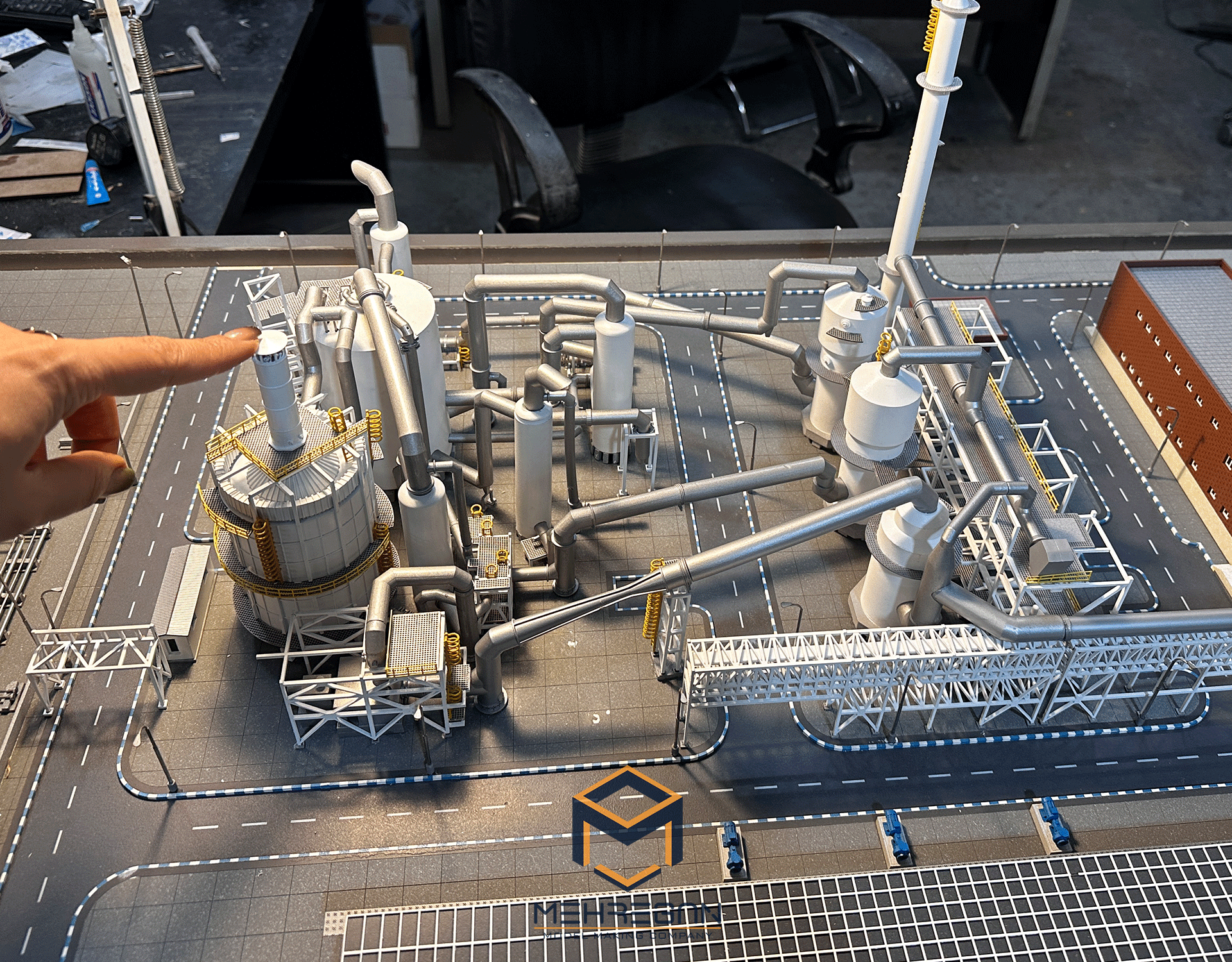

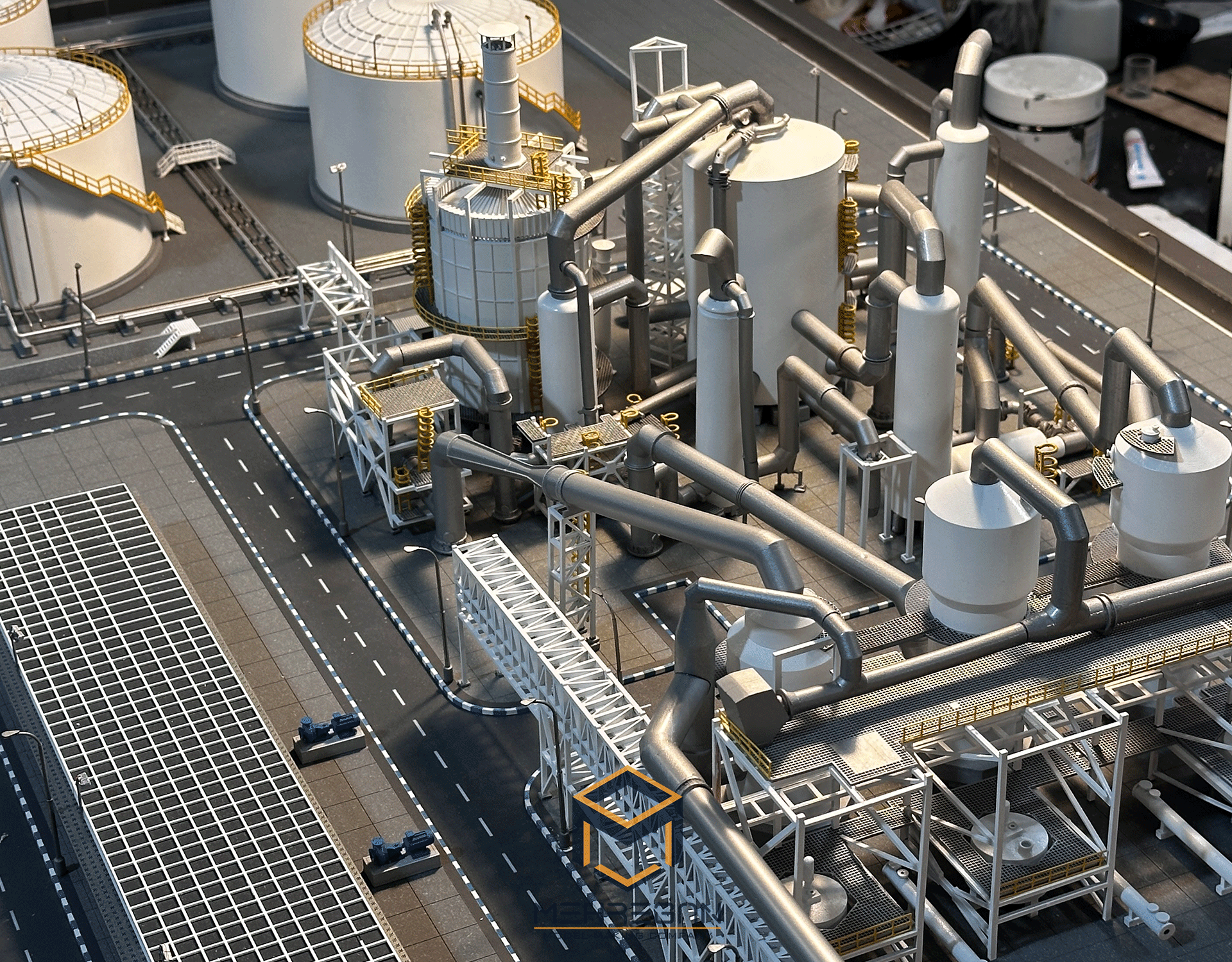

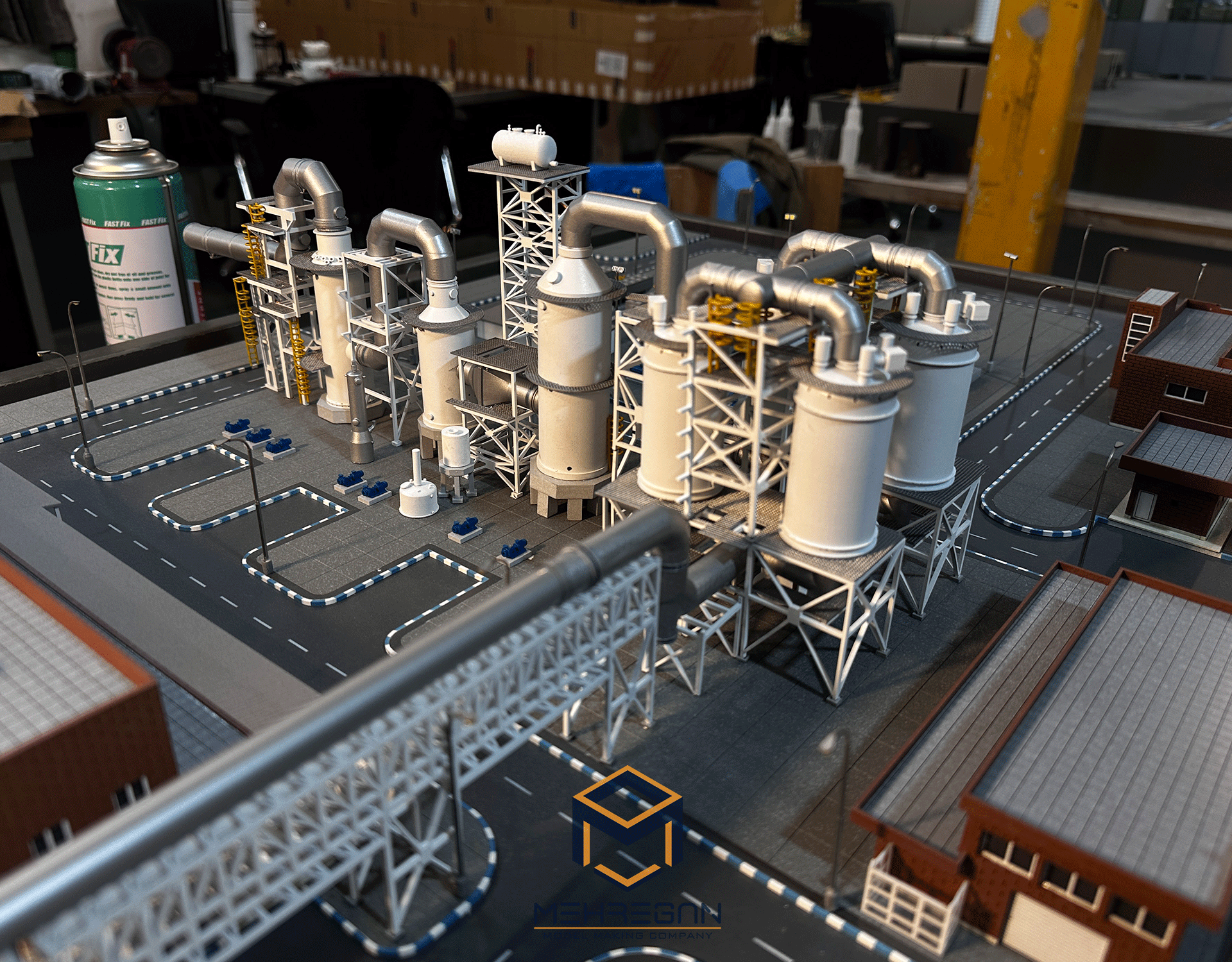

ماکت کارخانه ذوب خاتون آباد

کارفرما:

ایمیکو

ابعاد:

100 * 80 سانت

مقیاس:

1:100

زمان ساخت:

70 روز

کارفرما

ایمیکو

پروژه

ماکت کارخانه ذوب خاتون آباد

زمان ساخت

70 روز

مقیاس:

۱:۱۰۰

ابعاد ماکت:

80*100 سانت

تکنولوژی ساخت:

برش لیزر، پرینت سه‌بعدی، رنگ‌آمیزی صنعتی

ویژگی‌های برجسته:

ـ بازنمایی دقیق جزئیات مکانیکی و سازه‌ای

ـ رنگ‌آمیزی صنعتی با پوشش مقاوم

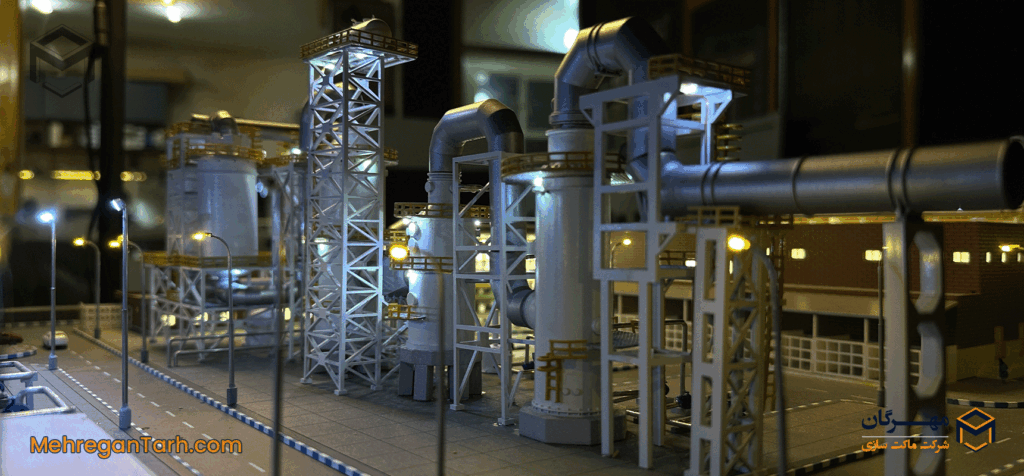

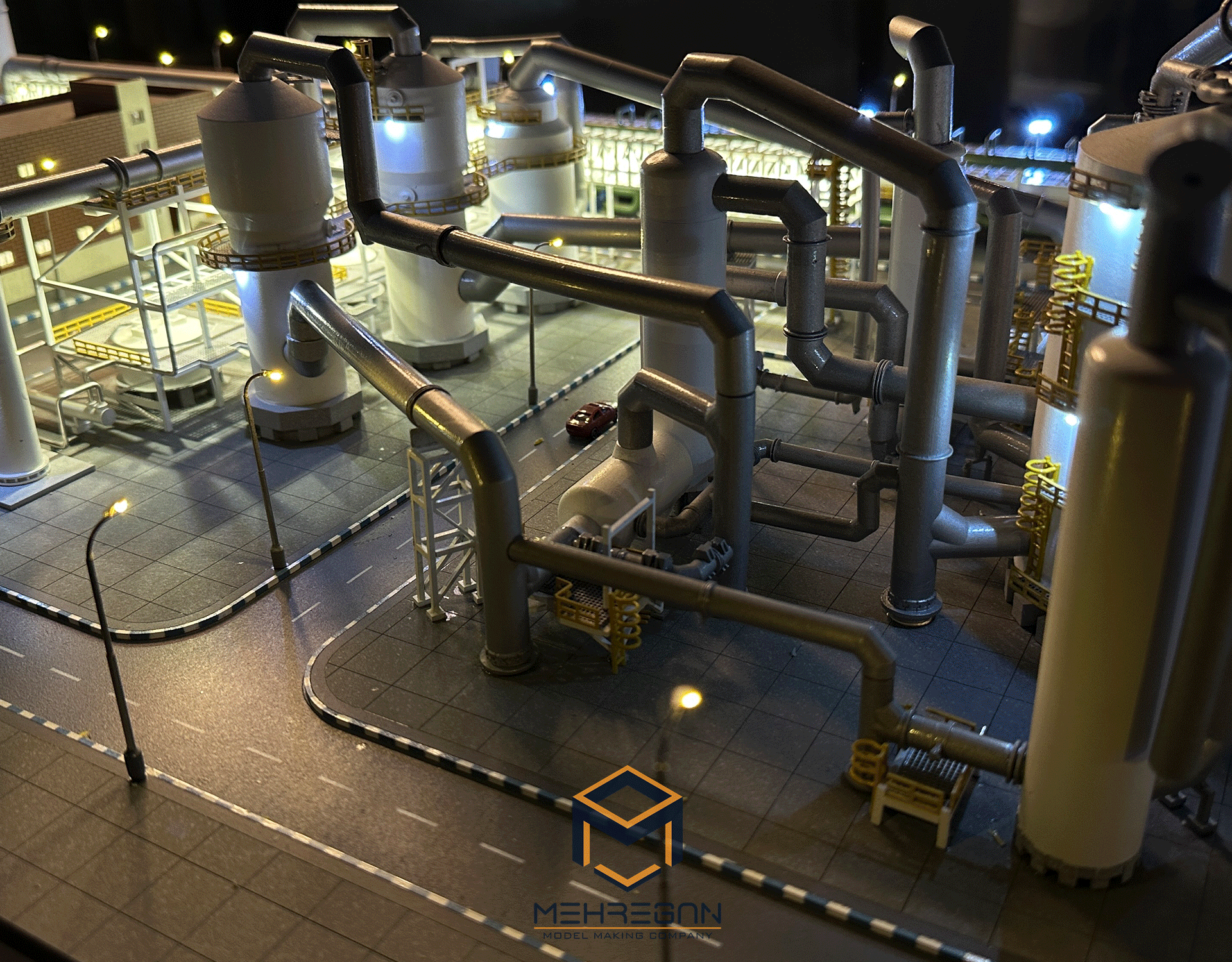

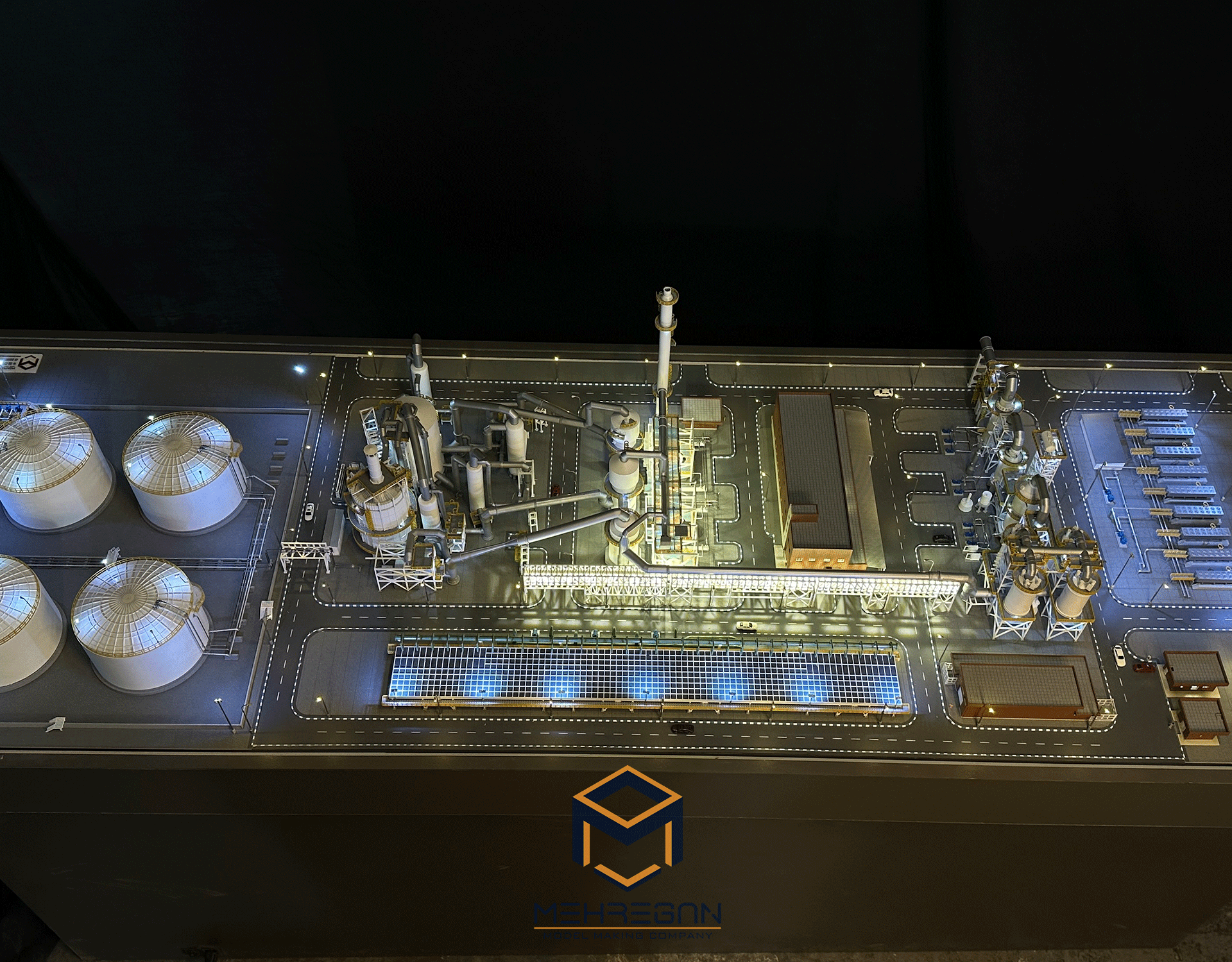

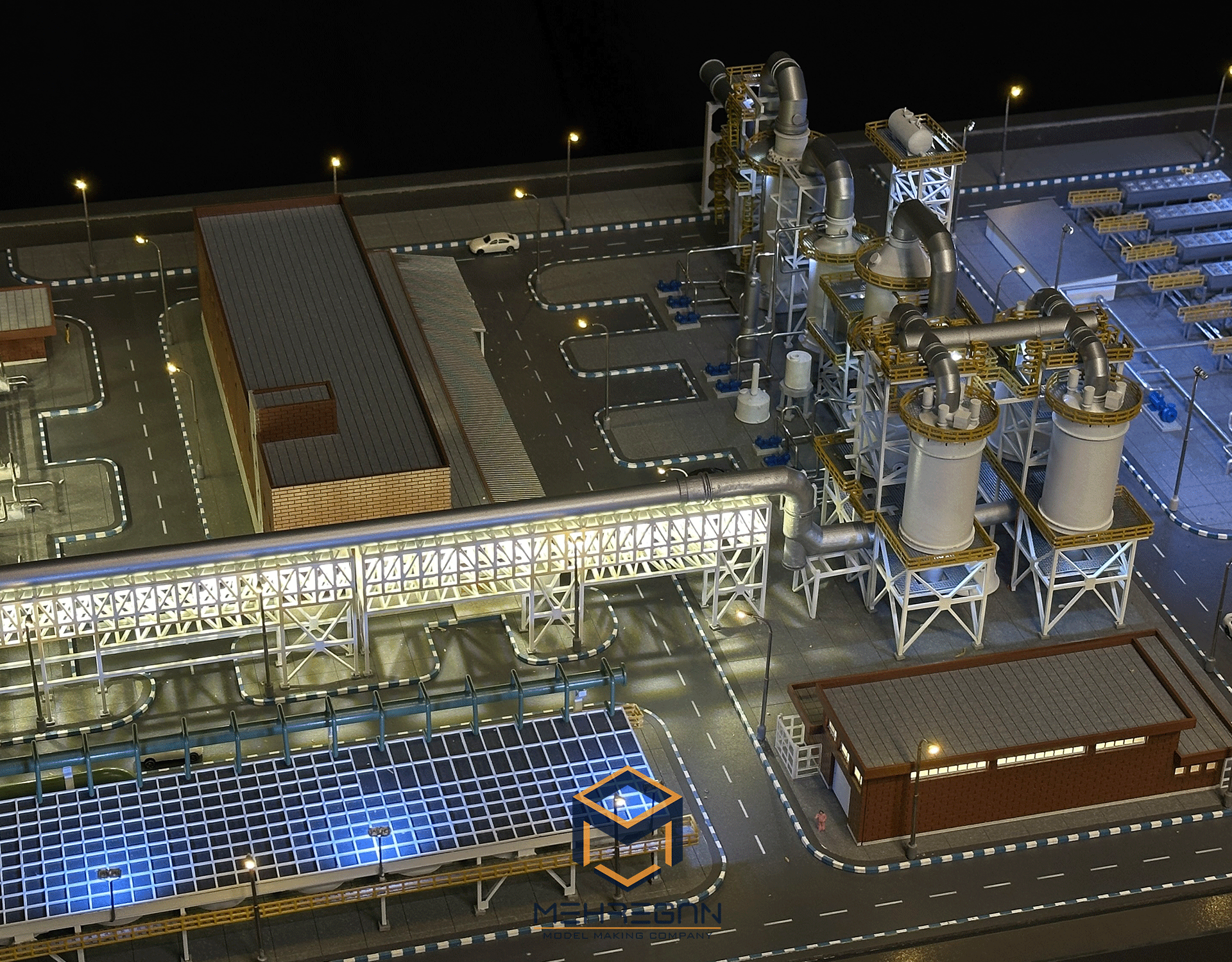

ـ نورپردازی و نمایش پویا (در صورت وجود)

ـ طراحی مدولار برای حمل و نمایش آسان

درباره این ماکت:

مزیت‌های استفاده از ماکت

کارخانه ذوب برای بازدید مقامات
با توجه به ماهیت حساس و خطرناک محیط کارخانه ذوب، استفاده از یک ماکت دقیق و حرفه‌ای می‌تواند بهترین راهکار برای ارائه تصویری جامع، ایمن و قابل‌درک از فرآیندها و زیرساخت‌های مجموعه باشد. ماکت یک ابزار کارآمد برای نمایش اطلاعات فنی و فضاسازی واقعی بدون نیاز به ورود افراد به محیط‌های پرریسک است.

مزیت‌های اصلی استفاده از ماکت عبارت‌اند از:

افزایش ایمنی بازدیدکنندگان
محیط کارخانه به دلیل وجود حرارت بالا، تجهیزات سنگین و فرایندهای احتمالاً خطرزا، محل مناسبی برای حضور مقامات و بازدیدکنندگان عمومی نیست. ماکت امکان ارائه کامل اطلاعات را بدون به خطر انداختن افراد فراهم می‌کند.

درک بهتر ساختار و فرایندها
ماکت سه‌بعدی به‌خوبی روابط بین بخش‌های مختلف، مسیرهای حرکت مواد، موقعیت تجهیزات و نحوه عملکرد خطوط تولید را نمایش می‌دهد و درک بازدیدکنندگان را نسبت به توضیحات صرفاً شفاهی به‌مراتب افزایش می‌دهد.

Client

Imico

Project

melting Khatunabad

Build Time

70 days

Scale

1:100

Model Size

80*100 CM

Technology Used

Laser cutting, 3D printing, industrial painting

Key Features

Highly detailed mechanical and structural representation
Industrial-grade painting and finishing
 Integrated lighting or dynamic presentation (if applicable)
Modular design for easy transportation and display

Description

*Advantages of Using a Model*

*Smelting Plant Model for Officials’ Visits*

Given the sensitive and hazardous nature of a smelting plant environment, using a precise and professional model can be the best solution for presenting a comprehensive, safe, and understandable view of the facility’s processes and infrastructure. A model is an effective tool for showcasing technical information and realistic spatial layout without requiring individuals to enter high-risk areas.

*The main advantages of using a model include:*

*Increased Safety for Visitors*
Due to high temperatures, heavy equipment, and potentially dangerous processes, the smelting plant environment is not suitable for the presence of officials or general visitors. A model provides the ability to present complete information without putting anyone at risk.

*Better Understanding of Structure and Processes*
A 3D model clearly illustrates the relationships between different sections, material flow paths, equipment locations, and how production lines operate. This significantly enhances visitors’ understanding compared to verbal explanations alone.
